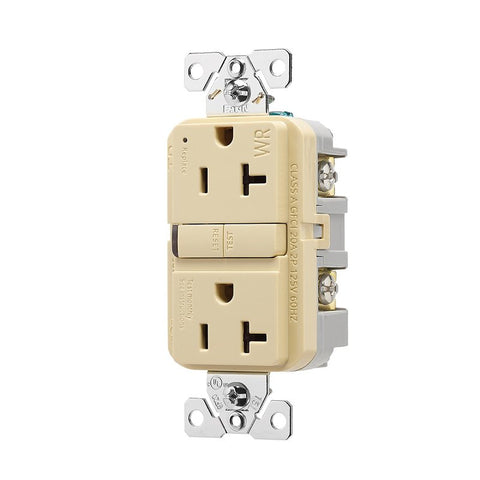

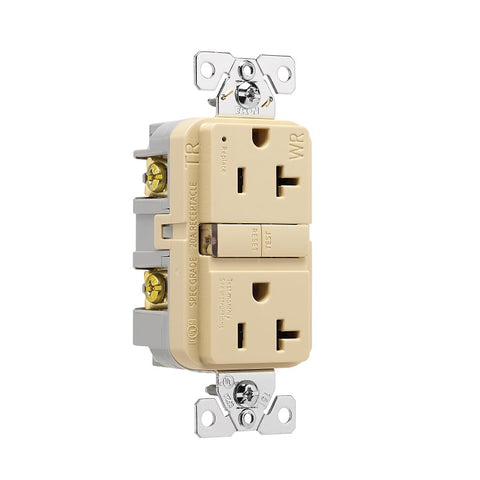

Eaton TWRGF20V Self-Test GFCI Receptacle, 125 V, 20 A, NEMA: NEMA 5-20R, Back, Side Wiring, Ivory
Regular price
$30.48
Sale price$35.15you save $4.67
Eaton Self-Test GFCI Receptacle, 125 V, 20 A, Number of Poles: 2, Short Circuit Current Rating: 10 kA, Grounding Type: Automatic, Number of Wires: 3, Wire Size: 14 to 10 AWG, Wiring Type: Back, Side, NEMA Rating: NEMA 5-20R, Operating Temperature: -35 to 66 deg C, Polycarbonate/Steel/Thermoplastic/PVC, Ivory, Dimensions: 4.19 in H x 1.69 in W
Unit: EA
UPC: 032664013409
Model Number: TWRGF20V
Unit: EA
UPC: 032664013409
Model Number: TWRGF20V
Eaton TWRGF20V Self-Test GFCI Receptacle, 125 V, 20 A, NEMA: NEMA 5-20R, Back, Side Wiring, Ivory
$30.48$35.15
Features
- Slimmer design for easy installation, leaving more room for wires in the box
- Automatically self-tests periodically to ensure GFCI protection
- GFCIs incorporate lock out functionality to protect against mis-wired line load connections and GFCI circuitry damage
- Wider button wells for easy test and reset
- Intuitive LED status indicators for trip and end of life states
- Clean, modern industrial design with reduced top housing markings and neutral text direction on buttons
- Meets and exceeds 10 kA short-circuit testing and underwriters laboratories
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
- External back wire clamps provide visual confirmation of secure termination
- Line side terminals are backed out and staked for fast installation
More Specifications
- Color: Ivory
- Current Rating: 20 A
- Dimensions: 4.19 in H x 1.69 in W
- Grounding Type: Automatic
- Material: Polycarbonate/Steel/Thermoplastic/PVC
- Nema Rating: NEMA 5-20R
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -35 to 66 deg C
- Short Circuit Current Rating: 10 kA
- Voltage Rating: 125 V
- Wire Size: 14 to 10 AWG
- Wiring Type: Back Side
