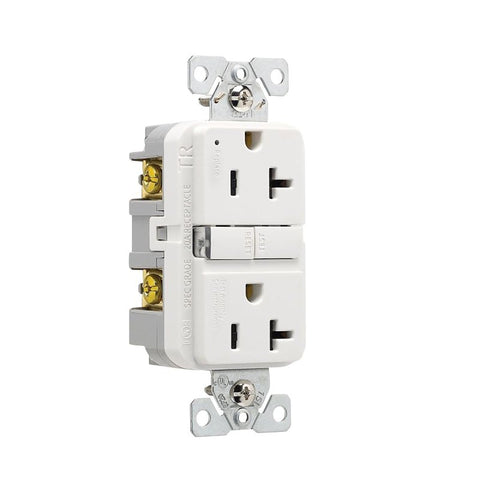

Eaton TRGF20W-BX-L Receptacle, 125 V, 20 A, NEMA: 5-20R, GFCI Socket, Back, Side Wiring, White, Pack of 10
Eaton Wiring Devices

Eaton TRGF20W-BX-L Receptacle, 125 V, 20 A, NEMA: 5-20R, GFCI Socket, Back, Side Wiring, White, Pack of 10

Our Item #: VORG4896528 UPC: 032664008092
Delivery i
3-5 Business Days
47 available
Ship to Store i
Pickup in 2-4 days
5 available
$259.25 $298.50you save $39.25
Eaton Receptacle, Self-Test, Tamper-Resistant, 125 V, 20 A, Number of Poles: 2, Socket Type: GFCI, Short Circuit Current Rating: 10 kA, Grounding Type: Self-Grounding, Number of Wires: 3, Wire Size: 14 to 10 AWG, Wiring Type: Back, Side, NEMA Rating: 5-20R, Operating Temperature: -35 to 66 deg C, Polycarbonate/PVC/Thermoplastic, White, Dimensions: 4.19 in H x 1.69 in W x 1.03 in D
Unit: EA
UPC: 032664008092
Model Number: TRGF20W-BX-L
Eaton TRGF20W-BX-L Receptacle, 125 V, 20 A, NEMA: 5-20R, GFCI Socket, Back, Side Wiring, White, Pack of 10
$259.25$298.50

  • Slimmer design for easy installation, leaving more room for wires in the box
  • Automatically self-tests periodically to ensure GFCI protection
  • Child-safety black tamper-resistant shutters help prevent improper insertion of foreign objects
  • GFCIs incorporate lock-out functionality to protect against mis-wired line-load connections and GFCI circuitry damage
  • External backwire clamps provide visual confirmation of secure termination
  • Line side terminals are backed out and staked for fast installation
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Clean, modern industrial design with reduced top housing markings and neutral text direction on buttons
  • Intuitive LED status indicators for trip and end of life states
  • Wider button wells for easy test and reset

  • Color: White
  • Current Rating: 20 A
  • Dimensions: 4.19 in H x 1.69 in W x 1.03 in D
  • Grounding Type: Self-Grounding
  • Material: Polycarbonate/PVC/Thermoplastic
  • Nema Rating: 5-20R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -35 to 66 deg C
  • Short Circuit Current Rating: 10 kA
  • Socket Type: GFCI
  • Type: Self-Test Tamper-Resistant
  • Voltage Rating: 125 V
  • Wire Size: 14 to 10 AWG
  • Wiring Type: Back Side
