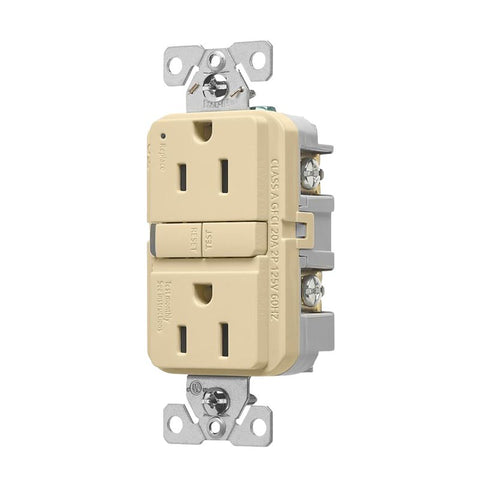

Eaton TRGF15V-BX-L Receptacle, 125 V, 15 A, NEMA: 5-15R, GFCI Socket, Back, Side Wiring, Ivory, Pack of 6
Eaton Wiring Devices

Eaton TRGF15V-BX-L Receptacle, 125 V, 15 A, NEMA: 5-15R, GFCI Socket, Back, Side Wiring, Ivory, Pack of 6

Our Item #: VORG2991461 UPC: 032664007996
Delivery i
3-5 Business Days
36 available
Ship to Store i
Pickup in 2-4 days
6 available
$144.49 $166.50you save $22.01
Eaton Receptacle, Self-Test, Tamper-Resistant, 125 V, 15 A, Number of Poles: 2, Socket Type: GFCI, Short Circuit Current Rating: 10 kA, Grounding Type: Self-Grounding, Number of Wires: 3, Wire Size: 14 to 10 AWG, Wiring Type: Back, Side, NEMA Rating: 5-15R, Operating Temperature: -35 to 66 deg C, Polycarbonate/PVC/Thermoplastic, Ivory, Dimensions: 4.19 in H x 1.69 in W x 1.03 in D
Unit: EA
UPC: 032664007996
Model Number: TRGF15V-BX-L
Eaton TRGF15V-BX-L Receptacle, 125 V, 15 A, NEMA: 5-15R, GFCI Socket, Back, Side Wiring, Ivory, Pack of 6
$144.49$166.50

  • Slimmer design for easy installation, leaving more room for wires in the box
  • Automatically self-tests periodically to ensure GFCI protection
  • Child-safety black tamper-resistant shutters help prevent improper insertion of foreign objects
  • GFCIs incorporate lock-out functionality to protect against mis-wired line-load connections and GFCI circuitry damage
  • External backwire clamps provide visual confirmation of secure termination
  • Line side terminals are backed out and staked for fast installation
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
  • Clean, modern industrial design with reduced top housing markings and neutral text direction on buttons
  • Intuitive LED status indicators for trip and end of life states
  • Wider button wells for easy test and reset

  • Color: Ivory
  • Current Rating: 15 A
  • Dimensions: 4.19 in H x 1.69 in W x 1.03 in D
  • Grounding Type: Self-Grounding
  • Material: Polycarbonate/PVC/Thermoplastic
  • Nema Rating: 5-15R
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -35 to 66 deg C
  • Short Circuit Current Rating: 10 kA
  • Socket Type: GFCI
  • Type: Self-Test Tamper-Resistant
  • Voltage Rating: 125 V
  • Wire Size: 14 to 10 AWG
  • Wiring Type: Back Side
