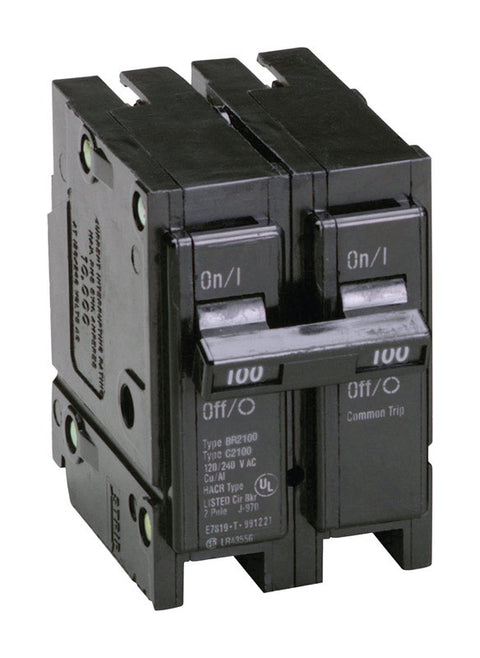

Eaton HomeLine Double Pole 100 amps Circuit Breaker
EATON CORPORATION

Eaton HomeLine Double Pole 100 amps Circuit Breaker

Our Item #: VSHE257876 UPC: 786676363259
$58.99

Eaton HomeLine Double Pole 100 amps Circuit Breaker

  • Brand Name: Eaton
  • Sub Brand: Cutler-Hammer
  • Amps: 100 amps
  • Circuit Protection Type: Plug In
  • Number of Poles: 2-Pole
  • Product Type: Circuit Breaker
  • Depth: 2.25 in.
  • UL Listed: Yes
  • Volts: 120/240 volts
  • Mounting Type: Plug-In
  • Packaging Type: Bulk
  • Indoor or Outdoor: Indoor
  • CSA Listed: Yes
  • Height: 3 in.
  • Product Series: Type BR
  • Width: 4 in.

    • UPC: 786676363259
    Model Number: BR2100

    • Wire Size #4-1/0
    • 10kA interrupting current rating
    • 1 inch space, CSA/UL Listed

    • Type: Type BR
    • Voltage Rating: 120/240 V
    • Current Rating: 100 A
    • Wattage Rating:
    • Operating Frequency: 50/60 Hz
    • Number of Phases: 1
    • Number of Poles: 2
    • Interrupt Rating: 42 kA
    • Frame Type:
    • Frame Size:
    • Actuator Type: Quick-Make, Quick-Break
    • Auxiliary Contacts:
    • Contact Configuration:
    • Trip Type:
    • Trip Sensitivity:
    • Wire Size: 4 - 1/0 AWG
    • Terminal Type:
    • Number of Spaces:
    • Enclosure Type:
    • Mounting Type: Plug
    • IP Rating:
    • Color:
    • Finish:
    • Dimensions: 6 in L x 4 in W x 2-1/4 in H
    • Operating Temperature: 60 to 75 deg C
    • Suitable for: Protecting the Wires in Home from Overheating and Fault Currents
    • Includes:

    HACR Rated | UL Listed | CSA Certified
