EATON WIRING DEVICES

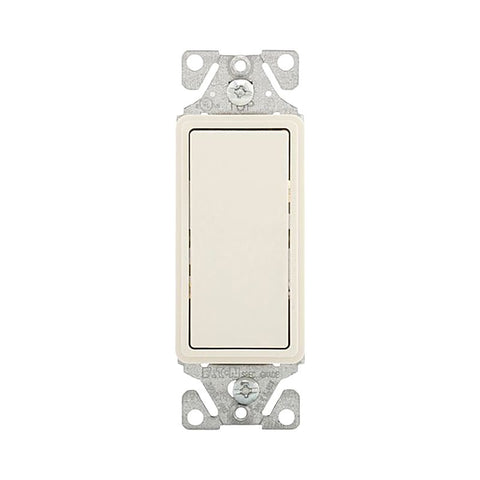

Eaton 7503 Series 7503LA 3-Way Decorator Rocker Switch, 15 A, 120/277 V, 3-Way, Back Wire, Push Wire Terminal
Sale price
$2.96
Regular price$3.95you save $0.99
Eaton 7503 3-Way Decorator Rocker Switch, 120/277 V, 15 A, Frequency Rating: 60 Hz, Number of Phases: 1, Number of Poles: 3, Action: Maintained, Contact Material: Brass, Contact Configuration: 3-Way, Dielectric Strength: 2000 V, Terminal Type: Back Wire, Push Wire, Temperature Rating: -31 to 150.8 deg F, Flush Mounting, Housing Material: Thermoplastic, Light Almond, Dimensions: 4.19 in H x 0.97 in W x 1.44 in D
Unit: EA
UPC: 032664627651
Model Number: 7503LA
Unit: EA
UPC: 032664627651
Model Number: 7503LA
Eaton 7503 Series 7503LA 3-Way Decorator Rocker Switch, 15 A, 120/277 V, 3-Way, Back Wire, Push Wire Terminal
$2.96$3.95
- Thermoplastic rocker, top and blackbody are virtually unbreakable, promising years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide great integrity
- Backwire clamps on side terminals provide for easy installation of 12 and 14 AWG wire
- Push-in terminals accept #14 AWG solid wire
- Stippled ground screw terminal standard
- 120/277 VAC rating ideal for fluorescent lighting fixtures and a broad variety of applications
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for #12 and #14 AWG wire to speed installation
- Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility
- Lighted switches glow-in "Off" position
- Action: Maintained
- Color: Light Almond
- Contact Configuration: 3-Way
- Contact Material: Brass
- Current Rating: 15 A
- Dielectric Strength: 2000 V
- Dimensions: 4.19 in H x 0.97 in W x 1.44 in D
- Frequency Rating: 60 Hz
- Housing Material: Thermoplastic
- Mounting Type: Flush
- Number of Phases: 1
- Number of Poles: 3
- Temperature Rating: -31 to 150.8 deg F
- Terminal Type: Back Wire Push Wire
- Voltage Rating: 120/277 V
