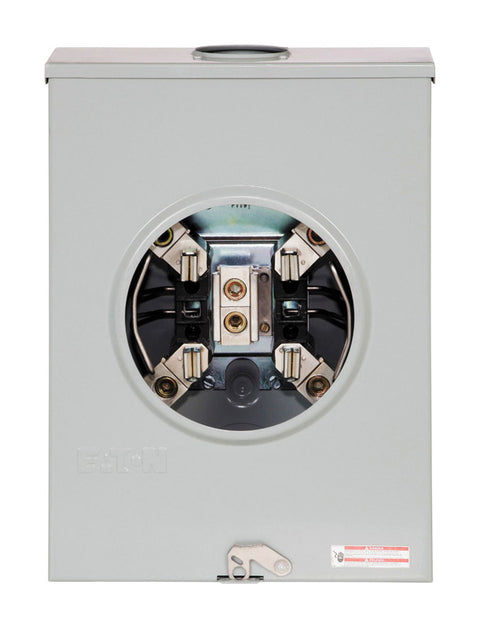

Eaton 200 amps Ringless Overhead/Underground Meter Socket
Eaton 200 amps Ringless Overhead/Underground Meter Socket
Eaton Corporation

Eaton 200 amps Ringless Overhead/Underground Meter Socket

Our Item #: VACE3195294 UPC: 786685217758
$89.99
All Eaton sockets are rated 600 VAC maximum and either 100, 200 or 320A continuous. All have a minimum short circuit rating of 10000 RMS symmetrical amperes (watt hour meter is not included in rating). All single meter sockets are UL labeled and are supplied in surface mounted outdoor enclosures. Each utility determines meter socket requirements per local codes and we offer a variety of designs to meet virtually any local utility specification.
  • 200 Amp Meter Socket
  • Ring Less
  • `Overhead/Underground Feed
  • Connections line - #6-350 kcmil

    • UPC: 786685217758
    Model Number: UTRS213BE

  • Brand Name:Eaton
  • Product Type: Meter Socket
  • ANSI Certified: Yes
  • Amps: 200 ampere
  • Brand Name: Eaton
  • Breakers Included: No
  • Depth: 5 inch
  • Length: 16 inch
  • Maximum Amperage: 200 ampere
  • Mounting Type: Surface Mount
  • Nema Type: 3R
  • Number of Gangs: 1 gang
  • Number of Phases: 1
  • Packaging Type: Boxed
  • Service Feed Type: Overhead/Underground
  • Socket Type: Ringless
  • UL Listed: Yes
  • Volts: 600 volt
  • Width: 11 inch
  • What's Included:200 amp meter socket with cover
