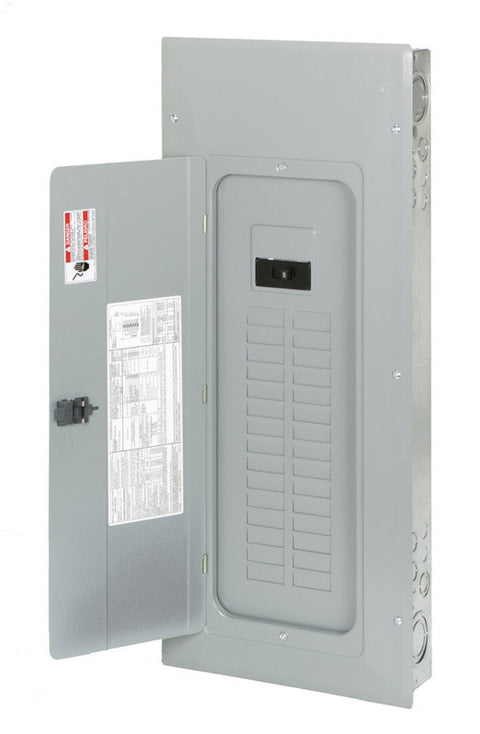

Eaton 200 amps 120/240 V 30 space 40 circuits Combination Mount Main Breaker Load Center
Eaton Corporation

Eaton 200 amps 120/240 V 30 space 40 circuits Combination Mount Main Breaker Load Center

Our Item #: VACE32173 UPC: 786689044060
$269.99
It is a 200 amp main breaker installed load center combination cover for flush or surface mount. It has 30 space circuit-40 single poles indoor. Use 2 (GBK14P) ground bars if required .
  • 200 Amp Main Breaker Load Center
  • 30-1" Spaces, 40 Circuits
  • Top or Bottom Feed
  • Indoor, NEMA 2
  • Surface or Flush Mount
  • Uses Type BR, BD, BQ, GFCB Eaton Circuit Breakers
  • Uses Type BR, BD, BQ, GFCB Eaton Circuit Breakers

    • UPC: 786689044060
    Model Number: BRP30B200

    • Brand Name:Eaton
    • Product Type: Main Breaker Load Center
    • Amps: 200 ampere
    • Brand Name: Eaton
    • Breakers Included: Yes
    • Circuit Protection Type: Main Breaker
    • Depth: 3.88 inch
    • Height: 14-5/16 inch
    • Maximum Number of Circuits: 40 circuits
    • Mounting Type: Combination Mount
    • Number of Spaces: 30 space
    • Packaging Type: Boxed
    • UL Listed: Yes
    • Volts: 120/240 volt
    • Width: 34-1/8 inch
    • Indoor or Outdoor: Indoor
