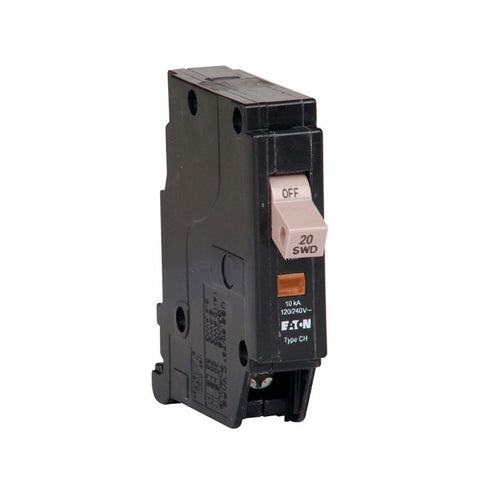

Cutler-Hammer CHF120 Circuit Breaker with Flag, Type CH, 20 A, 1 -Pole, 120/240 V, Mechanical Trip, Plug Mounting
Cutler-Hammer

Cutler-Hammer CHF120 Circuit Breaker with Flag, Type CH, 20 A, 1 -Pole, 120/240 V, Mechanical Trip, Plug Mounting

Our Item #: VORG6066369 UPC: 786685361840
Delivery i
3-5 Business Days
3743 available
Ship to Store i
Pickup in 2-4 days
2798 available
$12.25 $15.29you save $3.04
Eaton has enhanced its premium Type CH residential circuit breakers, making the ideal even better. In addition to the industry exclusive "Trip to OFF" and simple 1-step reset feature, Eaton has added a trip flag to visibly indicate breaker status. Along with Tri-Drive screws and new markings that highlight ratings and the Eaton brand. These additional features truly make this product a enhanced offering for residential, light commercial and OEM applications.
Unit: EA
UPC: 786685361840
Model Number: CHF120
Cutler-Hammer CHF120 Circuit Breaker with Flag, Type CH, 20 A, 1 -Pole, 120/240 V, Mechanical Trip, Plug Mounting
$12.25$15.29

  • Easy to install
  • Easy to reset
  • Ultimate performance
  • Circuit breaker is clearly marked identifying amperage, ratings and Eaton brand
  • Trip flag visibly indicates breaker status
  • Exclusive Trip to OFF and simple one-step reset breaker feature eliminates the need to turn the breaker off before turning to the ON position
  • Tri Drive screw accepts flat, Robertson or Phillips drivers, making it easier for electricians to install
  • Space saving 3/4 in design accommodates more breakers per panel

  • Actuator Type: Magnetic Thermal
  • Current Rating: 20 A
  • Dimensions: 3 in L x 3/4 in W x 3 in H
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug
  • Number of Phases: 1
  • Number of Poles: 1
  • Number Of Spaces: 1
  • Operating Frequency: 50/60 Hz
  • Operating Temperature: 60 to 75 deg C
  • Suitable for: Type CH Load Centers
  • Trip Type: Mechanical
  • Type: Type CH
  • Voltage Rating: 120/240 V
  • Wire Size: 14 to 10 14 to 8 AWG
