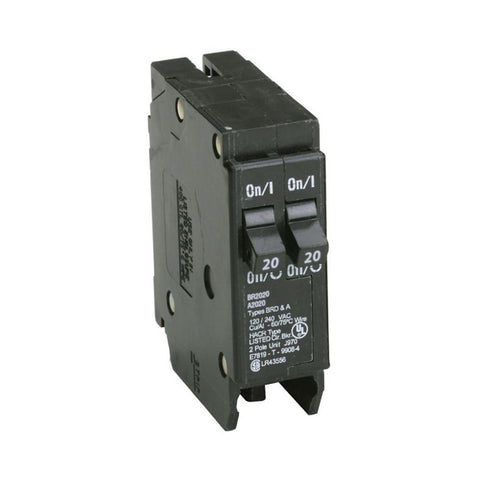

Cutler-Hammer BR2020 Circuit Breaker, Duplex, Type BR, 20 A, 2 -Pole, 120/240 V, Plug Mounting
Cutler-Hammer

Cutler-Hammer BR2020 Circuit Breaker, Duplex, Type BR, 20 A, 2 -Pole, 120/240 V, Plug Mounting

Our Item #: VORG6747307 UPC: 786676370257
Delivery i
3-5 Business Days
1577 available
Ship to Store i
Pickup in 2-4 days
330 available
$26.73 $30.85you save $4.12
Non-circuit limiting, less rejection tabs. 120 VAC, 10,000 AIC. One space per pole.
Unit: EA
UPC: 786676370257
Model Number: BR2020
Cutler-Hammer BR2020 Circuit Breaker, Duplex, Type BR, 20 A, 2 -Pole, 120/240 V, Plug Mounting
$26.73$30.85

  • All BR circuit breakers have rejection tab feature
  • Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design

  • Actuator Type: Quick-Make Quick-Break
  • Current Rating: 20 A
  • Dimensions: 3.1 in L x 0.98 in W x 2.89 in H
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug
  • Number of Phases: 1
  • Number of Poles: 2
  • Operating Frequency: 50/60 Hz
  • Operating Temperature: 60 to 75 deg C
  • Type: Duplex Type BR
  • Voltage Rating: 120/240 V
  • Wire Size: 14 to 4 AWG
