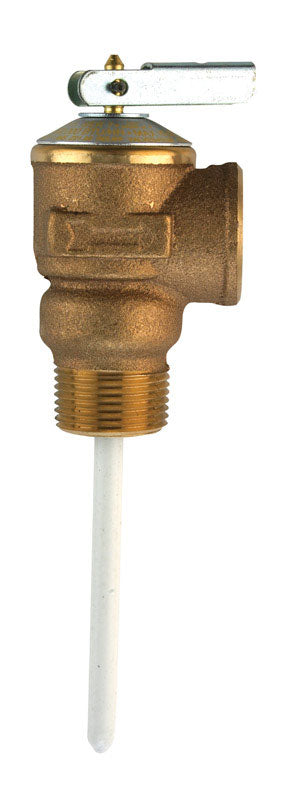

Cash Acme 3/4 in. Dia. Bronze Temperature and Pressure Relief Valve
Reliance Worldwide

Cash Acme 3/4 in. Dia. Bronze Temperature and Pressure Relief Valve

Our Item #: VSHE41970 UPC: 697285600423
Store Pickup i
Today
8 in stock
$18.99

Cash Acme 3/4 in. Dia. Bronze Temperature and Pressure Relief Valve

  • Brand Name: Cash Acme
  • Diameter: 3/4 in.
  • Product Type: Temperature and Pressure Relief Valve
  • Maximum Temperature: 210 deg. F
  • Material: Bronze
  • BTUs: 15000 BTU
  • 125 PSI
  • 3" Element Extension
  • For protection of water heaters and storage tanks
  • Automatic reseating
  • 210 deg. temperature relief, starts to open at 200 deg.
  • "White Coat":thermal element coating to isolate mineral buildup
  • AGA approved
  • ASME and CSA listed

    • Unit: EA
    UPC: 697285600423
    Model Number: NCLX-5
    Cash Acme 3/4 in. Dia. Bronze Temperature and Pressure Relief Valve
    $18.99

    • Incorporates an inert thermal element coating - provides effective isolation from mineral deposits (liming) and galvanic corrosion
    • Completely automatic and reseats after temperature or pressure relief
    • Every valve is tested for performance prior to shipping - specify and install with confidence

    • Nominal Size: 3/4 in
    • Connection Type: MNPT x FNPT
    • Pressure Adjustment Range: 75 to 175 psi
    • Lift Pressure:
    • Inlet Pressure:
    • Outlet Pressure:
    • Setting Pressure: 125 psi
    • Back Pressure:
    • Operating Pressure:
    • Pressure Class:
    • Flow Rate:
    • Port Type:
    • Media: Hot Water
    • Actuator Type:
    • Inlet to Outlet Length:
    • Top to Inlet Center:
    • Body Material: Bronze
    • Spring Material: Stainless Steel
    • Trim Material: Silicone
    • Softgoods Material:
    • Color:
    • Finish:
    • Dimensions: 6.4375 in L
    • Temperature Rating: 210 deg F
    • Suitable for:
    • Includes:

    ANSI Z21.22/CSA 4.4 Certified | NB Listed
