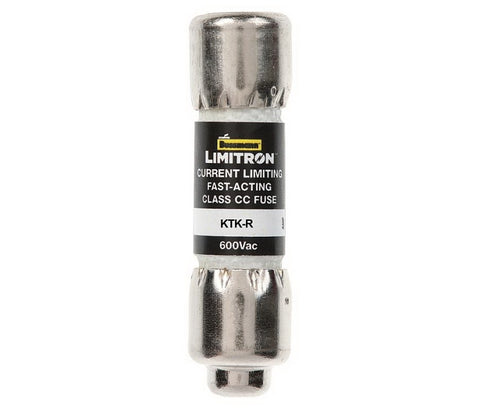

Bussmann KTK-R-25 Fast Acting Fuse, 25 A, 600 V, 200 kA Interrupt, Melamine Body
BUSSMANN

Bussmann KTK-R-25 Fast Acting Fuse, 25 A, 600 V, 200 kA Interrupt, Melamine Body

Our Item #: VORG7766009 UPC: 051712420730
Delivery i
3-5 Business Days
10 available
$27.38 $38.99you save $11.61
Midget fuses are 13/32 in x 1-1/2 in cartridge fuses in a wide variety of volt and amp ratings to provide supplemental protection to industrial, commercial, agricultural, heating, ventilating and air conditioning equipment. Small size midget fuses often protect control circuit wiring, motor control transformers or small motors. The National Electrical Code (NEC ) now requires more protection of these components creating an increased replacement demand for these fuses.
Unit: CD
UPC: 051712420730
Model Number: KTKR25
Bussmann KTK-R-25 Fast Acting Fuse, 25 A, 600 V, 200 kA Interrupt, Melamine Body
$27.38$38.99

  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • 200 kA interrupting rating complies with NEC Section 110.9 for today's large-capacity systems
  • Fast-acting fuse helps prevent equipment damage caused by short circuit events
  • Rejection-type fuse fits both standard and rejection style holders

  • Body Material: Melamine
  • Current Rating: 25 A
  • Diameter: 13/32 in
  • Element Type: Single
  • Indicator Type: Non-Indicating
  • Interrupt Rating: 200 kA
  • Length: 1-1/2 in
  • Rejection/Non-Rejection: Rejection
  • Terminal Type: Ferrule Holder
  • Type: Cartridge
  • Voltage Rating: 600 V
