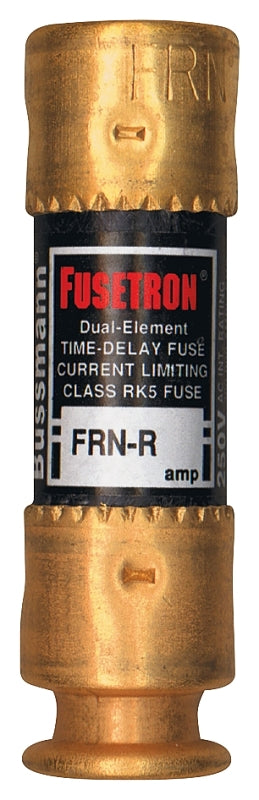

Bussmann FRN-R Series BP/FRN-R-30 Fuse, 30 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body, RK5
Bussmann

Bussmann FRN-R Series BP/FRN-R-30 Fuse, 30 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body, RK5

Our Item #: VSHE6194856 UPC: 051712112048
Store Pickup i
Today
1 in stock
$29.99
Provides motor overload, ground fault and short circuit protection. Helps protect motors against burnout from overloads and single-phasing on three phase systems. Will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of ten seconds. 250 V maximum. UL listed, CSA Certified.
Unit: CD 2
UPC: 051712112048
Model Number: BP/FRNR-30
Bussmann FRN-R Series BP/FRN-R-30 Fuse, 30 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body, RK5
$29.99

    • Body Material: Fiberglass
    • Current Rating: 30 A
    • Diameter: 9/16 in
    • Element Type: Dual
    • Fuse Group: H
    • Fuse Type: Low Voltage Time Delay
    • Indicator Type: Non-Indicating
    • Interrupt Rating: 20 200 kA
    • Length: 2
    • Rejection/Non-Rejection: Rejection
    • Terminal Type: Holder
    • Voltage Rating: 250 VAC 125 VDC
