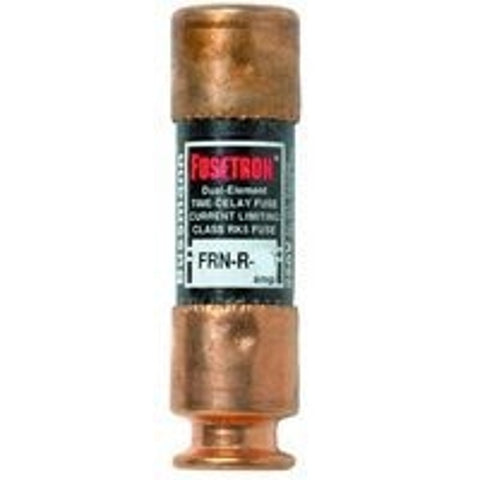

Bussmann BP/FRN-R-45 Fuse, 45 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body, K
BUSSMANN

Bussmann BP/FRN-R-45 Fuse, 45 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body, K

Our Item #: VORG6194989 UPC: 051712112079
Delivery i
3-5 Business Days
65 available
Ship to Store i
Pickup in 2-4 days
6 available
$25.36 $34.05you save $8.69
Provides motor overload, ground fault and short-circuit protection. Helps protect motors against burnout from overloads and single phasing on three phase systems. Will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of ten seconds. 250 V maximum. UL listed, CSA Certified.
Unit: CD 2
UPC: 051712112079
Model Number: BP/FRNR-45
Bussmann BP/FRN-R-45 Fuse, 45 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body, K
$25.36$34.05

    • Body Material: Fiberglass
    • Current Rating: 45 A
    • Diameter: 13/16 in
    • Element Type: Dual
    • Fuse Group: K
    • Fuse Type: Low Voltage Time Delay
    • Indicator Type: Non-Indicating
    • Interrupt Rating: 20 200 kA
    • Length: 3 in
    • Rejection/Non-Rejection: Rejection
    • Terminal Type: Holder
    • Voltage Rating: 250 VAC 125 VDC
