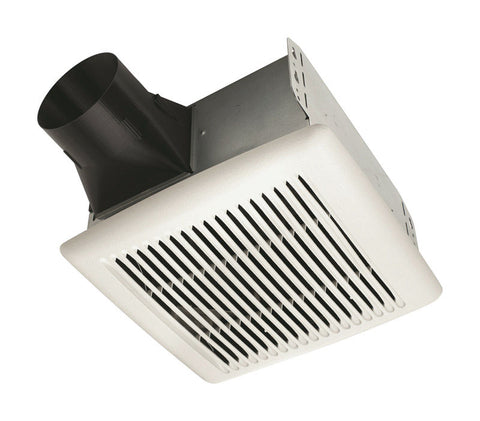

Broan Invent Ventilation Fan Ceiling 9-1/4 in. D x 5-3/4 in. H x 10 in. W
Broan-Nutone Llc

Broan Invent Ventilation Fan Ceiling 9-1/4 in. D x 5-3/4 in. H x 10 in. W

Our Item #: VSHE3537297 UPC: 026715235278
$169.99

Broan Invent Ventilation Fan Ceiling 9-1/4 in. D x 5-3/4 in. H x 10 in. W

  • Brand Name: Broan
  • Sub Brand: InVent Series
  • Maximum Air Volume: 80 CFM
  • Product Type: Ventilation Fan
  • Fan Sound Level: 0.8 Sones
  • Housing Material: Steel
  • Depth: 9-1/4 in.
  • Height: 5-3/4 in.
  • Watts: 27 watts
  • Ceiling or Wall Installation: Ceiling
  • Packaging Type: Boxed
  • UL Listed: Yes
  • ETL Listed: No
  • Nightlight: No
  • Compatible Duct Size: 4 in.
  • Light: No
  • Width: 5-3/4 in.
  • Grille Material: Polymeric
  • Color: White
  • HVI Certified: Yes

    • Unit: EA
    UPC: 026715235278
    Model Number: AE80

    • Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
    • Retrofit installations can be done entirely from the room-side, ensures faster and easier installation, so you can move on to something else
    • With our TrueSeal Damper technology, InVent fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
    • Ez-Duct connector can be installed room-side with no attic access required, fan housing connection have never been easier
    • UL Listed for use over tubs and showers with a GFCI circuit, so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
    • Can be installed in a wall if mounted 8 ft or more above the floor

    • Voltage Rating: 120 V
    • Current Rating: 0.3 A
    • Wattage Rating: 26.9 W
    • Frequency Rating: 60 Hz
    • Number of Phases:
    • Number of Blades:
    • Number of Speeds: 1
    • Air Flow Rate: 80 cfm
    • Grille Length: 11-3/8 in
    • Grille Width: 12 in
    • Length: 9-1/4 in
    • Width: 10 in
    • Height: 5-3/4 in
    • Material: Galvanized Steel
    • Grille Material: Polymeric
    • Color:
    • Mounting Type: Ceiling, Wall
    • Includes: Foldable Mounting Ear, Non-Metallic Damper/Duct Connector

    HVI | ENERGY STAR Certified | cULus Listed
