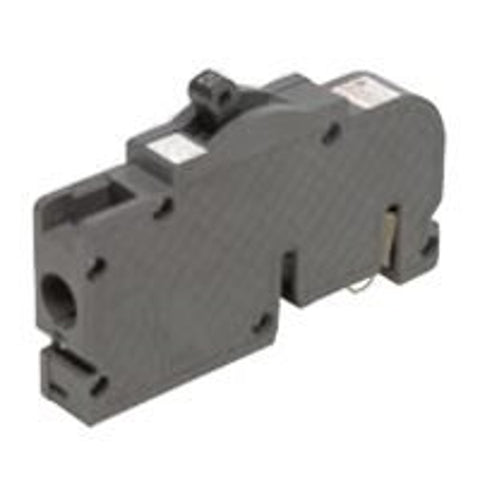

Zinsco UBIZ50 Circuit Breaker, Type UBIZ, 50 A, 1-Pole, 120/240 V, Standard Trip, Plug Mounting, Gray
Connecticut Electric

Zinsco UBIZ50 Circuit Breaker, Type UBIZ, 50 A, 1-Pole, 120/240 V, Standard Trip, Plug Mounting, Gray

Our Item #: VORG1484732 UPC: 094925003451
Delivery i
3-5 Business Days
6 available
$40.28 $55.99you save $15.71
This Zinsco breaker replacement is designed to be compatible with Zinsco panels that require a type Q breaker. It has a 3/4 in (standard) body, a single pole and is rated for 10 KAIC, 50 A and 120 V, making it compatible with Zinsco electric panels. Each breaker is newly fabricated to provide great protection against over-current and short-circuit conditions.
Unit: EA
UPC: 094925003451
Model Number: UBIZ50
Zinsco UBIZ50 Circuit Breaker, Type UBIZ, 50 A, 1-Pole, 120/240 V, Standard Trip, Plug Mounting, Gray
$40.28$55.99

  • SWD rated

  • Actuator Type: Magnetic Thermal
  • Color: Gray
  • Current Rating: 50 A
  • Dimensions: 4.81 in L x 0.75 in W x 2.53 in H
  • Interrupt Rating: 10 kA
  • Mounting Type: Plug
  • Number of Phases: 1
  • Number of Poles: 1
  • Operating Frequency: 50/60 Hz
  • Operating Temperature: 0 to 250 deg F
  • Suitable for: Zinsco Q Series Load Centers Well Pumps and Small Appliance Circuits
  • Terminal Type: Lug
  • Trip Type: Standard
  • Type: Type UBIZ
  • Voltage Rating: 120/240 V
  • Wire Size: 14 to 4 AWG
