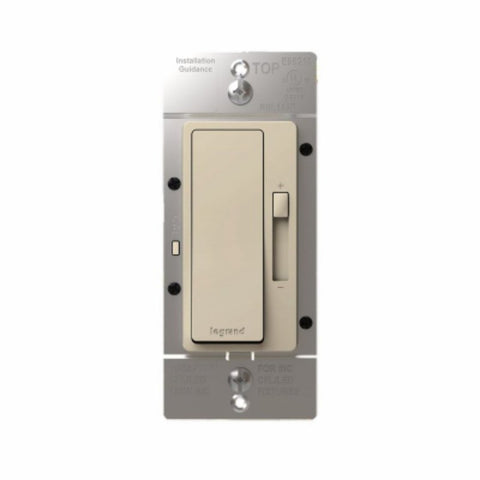

Legrand radiant Series RHL153PLA Advanced Dimmer, 1.25 A, 120 V, 150 W, CFL, Incandescent, LED Lamp, 3-Way
Pass & Seymour/Legrand

Legrand radiant Series RHL153PLA Advanced Dimmer, 1.25 A, 120 V, 150 W, CFL, Incandescent, LED Lamp, 3-Way

Our Item #: VORG9876509 UPC: 785007443011
Delivery i
3-5 Business Days
182 available
Ship to Store i
Pickup in 2-4 days
5 available
$39.62 $49.25you save $9.63
Upgrade your space with Legrand's newest LED dimmer switch in the Radiant collection. Designed specifically for flicker-free control of today's dimmable LED light bulbs and fixtures (except 0 to 10 V LED drivers), this dimmer features advanced circuitry to offer a excellent lighting control experience that works right out of the box. The dimmer switch boasts a variety of user adjustments to adapt to a wide range of dimmable LED lights, eliminating unpleasant flickering, pop ons and more. As a part of the Radiant collection, the advanced dimmer for LED lights also features clean lines and smooth control for a sophisticated touch. Pair with a screw-less Radiant wall plate and other designer switches and outlets from the collection for a cohesive design throughout the home. Made exclusively for use with screw-less wall plates from the Radiant collection.
Unit: EA
UPC: 785007443011
Model Number: RHL153PLACC4
Legrand radiant Series RHL153PLA Advanced Dimmer, 1.25 A, 120 V, 150 W, CFL, Incandescent, LED Lamp, 3-Way
$39.62$49.25

  • Specifically designed for use with dimmable LED bulbs and fixtures (except 0 to 10 V LED drivers) up to 150 W at 120 VAC
  • Optimized to work out of the box and provide flicker-free control of LEDs
  • Advanced dimming technology maximizes LED compatibility to provide a full range of control while helping to eliminate most common LED dimming issues
  • Simple high and low end dimming limit adjustability with easy to push calibration button to meet all lighting preferences and eliminate LED flickering
  • Optional LED burst mode setting can be activated as needed to help eliminate or reduce LED turn on delays and pop ons
  • Replaces any basic single pole or three-way switch or dimmer in less than 15 min
  • No neutral wire required, works in both new construction and retrofit applications
  • Back wire screw and pressure plate terminations for easy and reliable wiring with ground wire lead and wire nut provided
  • QR code provided on front face of device to provide easy access to installation guides and videos
  • Low profile paddle switch offers smoother on/off preset control, while separate, ergonomic slider allows for precise adjustment of light levels

  • Color: Light Almond
  • Control Type: Paddle Switch
  • Current Rating: 1.25 A
  • Dimensions: 4.19 in H x 1.74 in W x 1.46 in D
  • Frequency Rating: 60 Hz
  • Lamp Type: CFL Incandescent LED
  • Material: Steel/Thermoplastic
  • Mounting Type: Box
  • Number of Poles: 1
  • Operation Modes: 3-Way
  • Terminal Type: Back Wire Screw Pressure Plate
  • Voltage Rating: 120 V
  • Wattage Rating: 150 W
