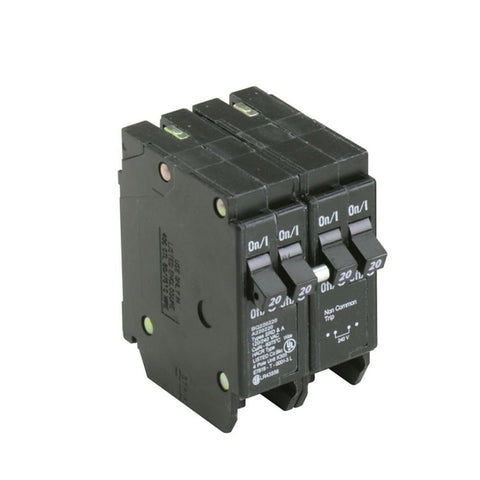

Cutler-Hammer BQ220220 Circuit Breaker with Rejection Tab, Type BQ, Quad, 20 A, 4-Pole, 120/240 V, Plug Mounting
Cutler-Hammer

Cutler-Hammer BQ220220 Circuit Breaker with Rejection Tab, Type BQ, Quad, 20 A, 4-Pole, 120/240 V, Plug Mounting

Our Item #: VORG4931622 UPC: 786676370752
Delivery i
3-5 Business Days
129 available
Ship to Store i
Pickup in 2-4 days
29 available
$38.06 $43.85you save $5.79
CTL Quadplex breaker with rejection tab, 2-pole outer independent trip and 2-pole center independent trip. Requires two 1 in spaces, Wire size range #14-4, 120/240 VAC. 9 lb weight, 3 x 2 x 3 in. UL Listed, Meets UL 489. Listing for HACR applications. Meets Federal Spec classification W-C375. 120/240 V, 10,000 AIC interrupting capacity.
Unit: EA
UPC: 786676370752
Model Number: BQ220220
Cutler-Hammer BQ220220 Circuit Breaker with Rejection Tab, Type BQ, Quad, 20 A, 4-Pole, 120/240 V, Plug Mounting
$38.06$43.85

    • Actuator Type: Magnetic Thermal
    • Current Rating: 20 A
    • Dimensions: 3.1 in L x 1.97 in W x 2.89 in H
    • Interrupt Rating: 10 kA
    • Mounting Type: Plug
    • Number of Phases: 1
    • Number of Poles: 4
    • Operating Frequency: 50/60 Hz
    • Operating Temperature: 60 to 75 deg C
    • Terminal Type: Feed-Thru
    • Type: Type BQ Quad
    • Voltage Rating: 120/240 V
    • Wire Size: 14 to 4 AWG
