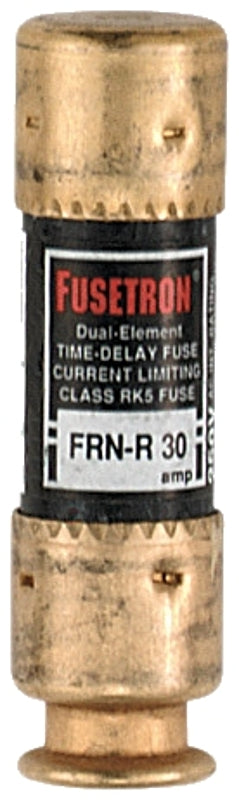

Bussmann FRN-R-30 Fuse, 30 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body, H
Bussmann

Bussmann FRN-R-30 Fuse, 30 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body, H, Low Voltage, Time Delay Fuse

Our Item #: VORG4184230 UPC: 051712101769
Delivery i
3-5 Business Days
1632 available
Ship to Store i
Pickup in 2-4 days
405 available
$7.20 $13.99you save $6.79
Provides motor overload, ground fault and short circuit protection. Helps protect motors against burnout from overloads and single phasing on three phase systems. Will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of ten seconds. 250 V maximum. UL listed, CSA Certified.
Unit: EA
UPC: 051712101769
Model Number: FRN-R-30
Bussmann FRN-R-30 Fuse, 30 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body, H, Low Voltage, Time Delay Fuse
$7.20$13.99

  • Bussmann Series fusetron cartridge fuses are 23% more energy efficient and offer the excellent time delay performance
  • Their dual-element feature allows closer sizing to load for great protection of motors and transformers
  • When sized correctly, they help protect motors from burnout caused by overloads or single-phasing
  • The time delay feature allows the initial start-up current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present

  • Body Material: Fiberglass
  • Current Rating: 30 A
  • Diameter: 9/16 in
  • Element Type: Dual
  • Fuse Group: H
  • Fuse Type: Low-Voltage Time Delay
  • Indicator Type: Non-Indicating
  • Interrupt Rating: 20 200 kA
  • Length: 2 in
  • Rejection/Non-Rejection: Rejection
  • Terminal Type: Holder
  • Voltage Rating: 250 VAC 125 VDC
