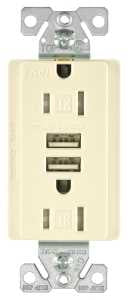

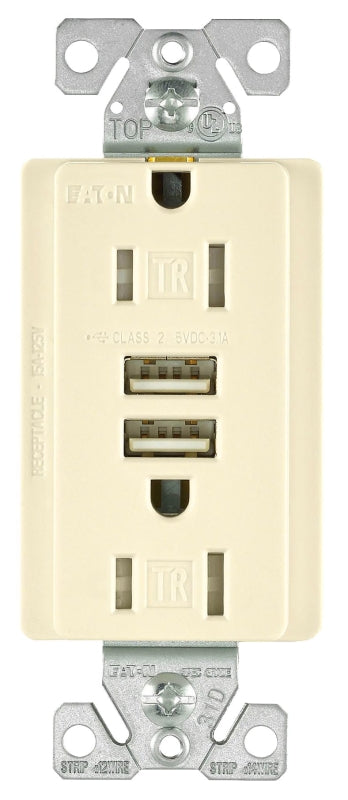

Arrow Hart TR7755LA-K Combination USB Receptacle, Light Almond, 2-Pole, 3.1 A USB, 15 A Receptacle, 2-USB Port
Arrow Hart TR7755LA-K Combination USB Receptacle, Light Almond, 2-Pole, 3.1 A USB, 15 A Receptacle, 2-USB Port
Eaton Wiring Devices

Arrow Hart TR7755LA-K Combination USB Duplex Receptacle, 2-Pole, 3.1 a USB, 15 a Receptacle, 2-USB Port, Light Almond

Our Item #: VORG1452978 UPC: 032664767104
Delivery i
3-5 Business Days
31 available
$29.10 $33.55you save $4.45
The Arrow Hart 3.1 A USB duplex receptacle provides quick and convenient access to charge virtually any electronic component including smart phones, tablets, e-readers, cameras and MP3 players. The specification-grade device is built to withstand the tough demands of the commercial environment while also providing code compliance with 2011 NEC Article 406.12 that requires tamper-resistant receptacles in dwelling units.
Unit: CD
UPC: 032664767104
Model Number: TR7765LA-KB-L
Arrow Hart TR7755LA-K Combination USB Duplex Receptacle, 2-Pole, 3.1 a USB, 15 a Receptacle, 2-USB Port, Light Almond
$29.10$33.55

  • Standard AC receptacle with two USB charging ports for conveniently charging most electronic components
  • Dual USB charging ports charge most compatible electronic devices that charge via a 5 V power adapter
  • Tamper-resistant construction
  • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure and provides redundant measure of ground continuity where jumper is used
  • Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
  • Steel mounting strap is zinc-plated for added corrosion resistance
  • Convenient patented built-in wire stripper speeds installation
  • Back wire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
  • Triple-wipe blade contacts and double-wipe ground contacts to insure long-term plug retention
  • Replaces a standard duplex receptacle

  • Color: Light Almond
  • Current Rating: 3.1 A USB 15 A Receptacle
  • Dimensions: 1.47 in D x 4.19 in H
  • Frequency Rating: 140 kHz
  • Material: Thermoplastic
  • Number of Poles: 2
  • Number of USB Ports: 2
  • Number Of Wires: 3
  • Operating Temperature: -4 to 140 deg F
  • Type: Duplex
  • Voltage Rating: 125 VAC Receptacle 5 VDC USB
  • Wire Size: 12 to 14 AWG
  • Wiring Type: Back and Side
