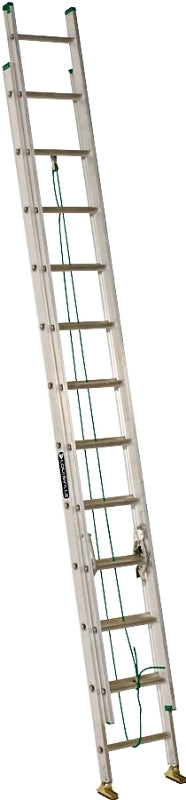

LADDER EXTENSION AL TYP2 16FT
LADDER EXTENSION AL TYP2 16FT
Louisville Ladder

LADDER EXTENSION AL TYP2 16FT

Our Item #: VORG6574917 UPC: 728865110572
Delivery i
3-5 Business Days
6 available
Ship to Store i
Pickup in 2-4 days
6 available
$246.61 $283.69you save $37.08
QUICKLATCH equipped runglock provides easier method of securing fly base sections when extended. Heavy-duty plated steel swivel safety shoes with thick rubber tread. Shoe can be used with tread down or in spike position. Tempered, serrated aluminum D-shaped rungs provide for a slip-resistant surface. Side rails are full 3" extrusions shaped into a modified I-beam for strength and light weight. Interlocking rails keep fly and base sections from coming apart. Meets or exceeds the safety standards set by ANSI and OSHA. ProGrip- integrated surface protector with non-marring, slip resistant pads and hand grips. Dimensions: 3" rail depth, 5-1/4" stack height, 15-1/4" base inside, 14-5/16" fly inside, 17-1/8" base outside and 16-3/16" fly outside. AE4216PG does not include rope & pulley.
Unit: EA
UPC: 728865110572
Model Number: AE4216PG
LADDER EXTENSION AL TYP2 16FT
$246.61$283.69

    • Base Width: 15-1/4 in Inside 17-1/8 in Outside
    • Closed Depth: 6-5/8 in
    • Closed Height: 103-3/4 in
    • Closed Volume: 7.16 cu-ft
    • Closed Width: 18 in
    • Duty Rating: Type II
    • Extension Length: 13 ft
    • Fly Width: 14-5/16 in Inside 16-3/16 in Outside
    • Length: 99.606 in
    • Material: Aluminum
    • Number of Steps: 16
    • Open Width: 16 in
    • Opening Height: 16 ft
    • Rail Depth: 3 in
    • Rail Type: I-Beam
    • Reach Height: 193 in
    • Rung Type: D-Shaped
    • Section Length: 8 ft
    • Size: 16 ft
    • Stack Height: 5-1/4 in
    • Standing Height: 114 in
    • Step Depth: 1-1/2 in
    • Weight Capacity: 225 lb
    • Work Area: 13 ft
