Kwikset

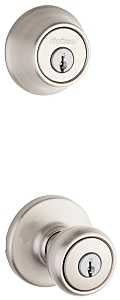

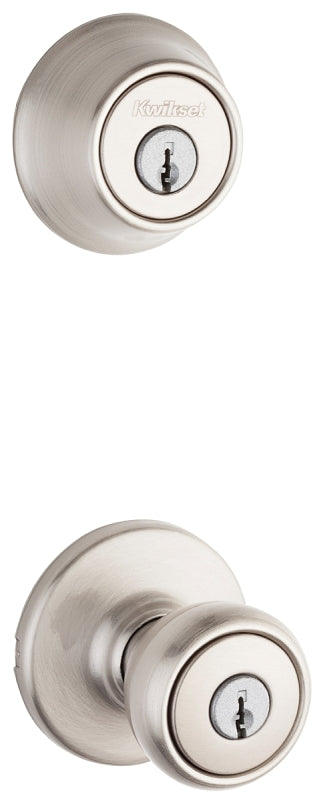

Kwikset 690T 15CP K6 Combination Lockset, Keyed Deadbolt Lock, Knob Handle, Tylo Design, Satin Nickel, Turn-Piece, Metal
Sale price
$36.88
Regular price$42.49you save $5.61
Includes one Tylo entry knob lockset and one #660 deadbolt. Knobs locked or unlocked by key outside or turn-button inside. Dead bolt operated by key outside and thumb turn inside. Security knobs feature full 1 in solid core throw bolt, all-metal mechanisms, anti-pry shield 5-pin system. Door prep 2-1/8 in cross bore, 1 in edge bore, 1 in x 2-1/4 in latch face. Backset of 2-3/8 in standard and adjustable 2-3/8 in and 2-3/4 in optional. Door thickness 1-3/8 to 1-3/4 in. Cylinder 5fivepin. Faceplates of 1 in x 2-1/4 in round corner. Strikes of 1 in x 2-1/4 in full lip. Bolt knob 1/2 in throw, dead bolt 1 in throw. Reversible for right or left-hand doors. ANSI/BHMA knob Grade 3, dead bolt Grade 3.
Unit: CD
UPC: 883351542562
Model Number: 690T-15 K6 CP
Unit: CD
UPC: 883351542562
Model Number: 690T-15 K6 CP
Kwikset 690T 15CP K6 Combination Lockset, Keyed Deadbolt Lock, Knob Handle, Tylo Design, Satin Nickel, Turn-Piece, Metal
$36.88$42.49
- Combo pack - use on doors requiring a high-level of security, includes a dead bolt and keyed entry lever, recommended for a low-cost exterior door solution
- SmartKey Security - Kwikset's SmartKey Security technology protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- Easy install reversible - do it yourself, installs in minutes with just a screwdriver, reversible handle for left- or right-handed doors, detailed directions provided
- Adjustable latch - by sliding the adjustment pin during installation, the latch backset can be adjusted to either 2-3/8 or 2-3/4 in in order to fit all standard door preparations
- Backset Size: 2-3/8 to 2-3/4 in
- Backset Type: Adjustable
- Bolt Throw Size: 1 in
- Cross Bore Diameter: 2-1/8 in
- Cylinder Type: 5-Pin
- Deadbolt Latch Throw: 1 in
- Design: Tylo
- Dimensions: 1-7/8 in Dia x 2-5/8 in L x 2-1/2 in W
- Door Handing: Left Right
- Door Thickness: 1-3/8 to 1-3/4 in
- Edge Bore Diameter: 1 in
- Faceplate Size: 1 x 2-1/4 in
- Finish: Satin Nickel
- Handle Type: Knob
- Includes: (1) Tylo Entry Knob Lockset and (1) 660 Deadbolt
- Interior Handle Type: Turn-Piece
- Interior Locking: Turn-Piece
- Key Type: Keyed
- Keyway Type: K6
- Knob Diameter: 1-7/8 in
- Latch Type: Adjustable
- Lock Type: Keyed Deadbolt
- Material: Metal
- Overall Height: 2-5/8 in
- Resists: Bacteria
- Security Grade: 3
- Strike Size: 1 x 2-1/4 in
- Strike Type: Round Corner
