Eaton Wiring Devices

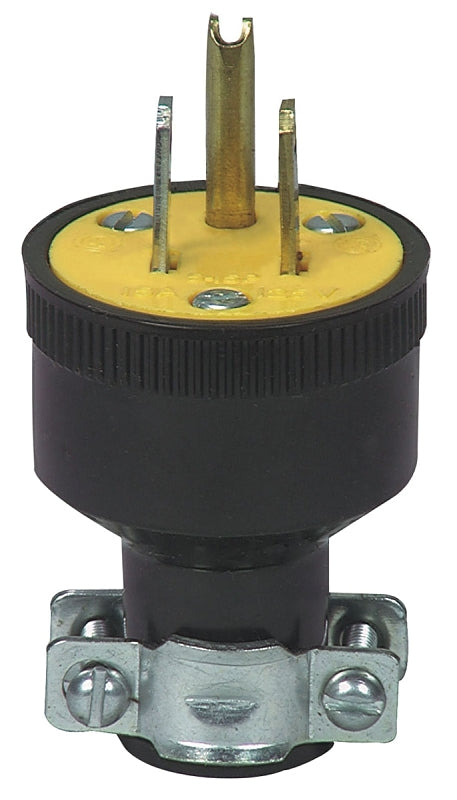

Eaton BP1709 Electrical Plug, 2-Pole, 15 A, 125 V, Slot, NEMA: NEMA 5-15, Black
Sale price
$5.81
Regular price$8.79you save $2.98
Meets all UL 498 requirements. Solid brass straight plug blades. Combination slot/Phillips head mounting and terminal screws. Temperature rating of -20 to 60 deg C. 15 A, 125 V. 1/4 to 39/64 in cord diameter. UL listed, CSA Certified. NEMA 5-15P.
Unit: CD
UPC: 032664125003
Model Number: BP1709
Unit: CD
UPC: 032664125003
Model Number: BP1709
Eaton BP1709 Electrical Plug, 2-Pole, 15 A, 125 V, Slot, NEMA: NEMA 5-15, Black
$5.81$8.79
- Solid brass plug blades are firmly embedded in body
- Terminal screw clamps are designed to contain wire and prevent binding
- Terminal screws backed out ready for wiring
- Terminals in individual chambers to positively insulate conductors
- Thermoplastic rubber plugs and connectors maintain flexibility in extremely low temperatures
- Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
- Cable/Wire Size: 1/4 to 39/64
- Color: Black
- Connection Type: Slot
- Current Rating: 15
- Dimensions: 2 in L x 1.54 in W
- Grounding Type: Grounded
- Material: Thermoplastic
- NEMA Configuration: NEMA 5-15
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -20 to 60
- Type: Heavy-Duty Straight Blade
- Voltage Rating: 125
