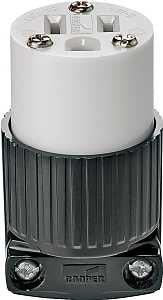

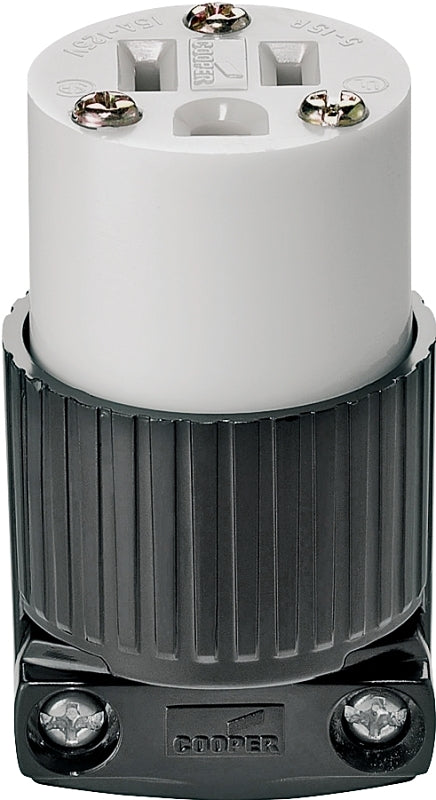

Eaton Wiring Devices 5269 Eagle Electrical Connector, 2 -Pole, 15 A, 125 V, NEMA: NEMA 5-15, Black/White
Eaton Wiring Devices 5269 Eagle Electrical Connector, 2 -Pole, 15 A, 125 V, NEMA: NEMA 5-15, Black/White
Eaton Wiring Devices

Eaton 5269 Eagle Electrical Connector, 2-Pole, 15 A, 125 V, Screw, NEMA: NEMA 5-15, Black/White

Our Item #: VORG6269450 UPC: 032664392405
Delivery i
3-5 Business Days
183 available
Ship to Store i
Pickup in 2-4 days
13 available
$14.91 $19.35you save $4.44
Industrial-grade. High impact-resistant thermoplastic housings with easy-grip grooves. Plated steel assembly screws are speed-threaded and captive, reducing installation time. Terminals in individual chambers to positively insulate conductors. Clearly marked rating, NEMA configuration and standard compliances (third-party listing) on face of device. Color coded clamps identify amperage - blue 15 A. Terminal screws backed out; ready for wiring. Combination slot/Phillips head terminal, assembly and clamping screws. Meets all 498 requirements. 15 A, 125 V. UL listed. NEMA 5-15.
Unit: EA
UPC: 032664392405
Model Number: 5269/10
Eaton 5269 Eagle Electrical Connector, 2-Pole, 15 A, 125 V, Screw, NEMA: NEMA 5-15, Black/White
$14.91$19.35

  • High-impact-resistant thermoplastic housings with easy grip grooves
  • Assembly screws are speed-threaded and captive, reducing installation time
  • Terminals in individual chambers to positively insulate conductors
  • Clearly marked rating, NEMA configuration and standard compliances on face of device
  • Terminal screws backed out ready for wiring

  • Cable/Wire Size: 1/4 to 11/16
  • Color: Black/White
  • Connection Type: Screw
  • Current Rating: 15
  • Dimensions: 2.61 in L x 1.53 in W
  • Grounding Type: Grounded
  • Material: Thermoplastic
  • NEMA Configuration: NEMA 5-15
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -40 to 70
  • Type: Polarized
  • Voltage Rating: 125
