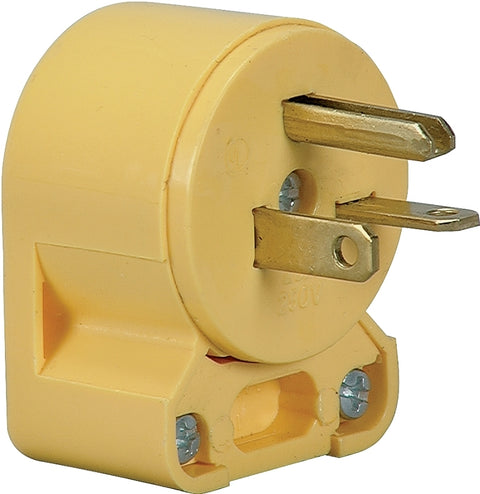

Eaton Wiring Devices 4509AN-BOX Electrical Plug, 2 -Pole, 20 A, 250 V, NEMA: NEMA 6-20, Yellow
Eaton Wiring Devices 4509AN-BOX Electrical Plug, 2 -Pole, 20 A, 250 V, NEMA: NEMA 6-20, Yellow
Eaton Wiring Devices

Eaton Wiring Devices 4509AN-BOX Electrical Plug, Angled, Straight Body, 1/4 to 21/32 in, 2-Pole, 20 A, 250 V, Yellow

Our Item #: VORG6088470 UPC: 032664536854
Delivery i
3-5 Business Days
184 available
Ship to Store i
Pickup in 2-4 days
77 available
$8.92 $13.49you save $4.57
Solid brass plug blades are firmly embedded in body. Resists chemical attack and is less brittle in extremely low temperatures. With terminal screw clamps. Combination Slot/Phillips head mounting and terminal screws for installation flexibility (Slot/Robertson screws in Canada where available). Terminal screws backed out, ready for wiring. Yellow color. Meets all UL 498 requirements.
Unit: EA
UPC: 032664536854
Model Number: 4509AN-BOX
Eaton Wiring Devices 4509AN-BOX Electrical Plug, Angled, Straight Body, 1/4 to 21/32 in, 2-Pole, 20 A, 250 V, Yellow
$8.92$13.49

  • Solid brass plug blades are firmly embedded in body
  • Vinyl plugs and connectors resist chemical attack and are less brittle in extremely low temperatures
  • Terminal screws backed out ready for wiring
  • Terminals in individual chambers to positively insulate conductors
  • Terminal screw clamps are designed to contain wire and prevent binding
  • Combination Slotted/Phillips head mounting and terminal screws ease installation with power screwdrivers
  • Vinyl angle plugs have eight possible positions for maximum convenience

  • Cable/Wire Size: 1/4 to 21/32 in
  • Color: Yellow
  • Connection Type: Screw
  • Current Rating: 20 A
  • Dimensions: 1-61/64 in L x 1-1/2 in W x 1-27/64 in D
  • Grounding Type: Grounded
  • Material: Thermoplastic/Vinyl
  • Mounting Type: Screw
  • NEMA Configuration: NEMA 6-20
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -20 to 60 deg C
  • Type: Angled Straight
  • Voltage Rating: 250 V
