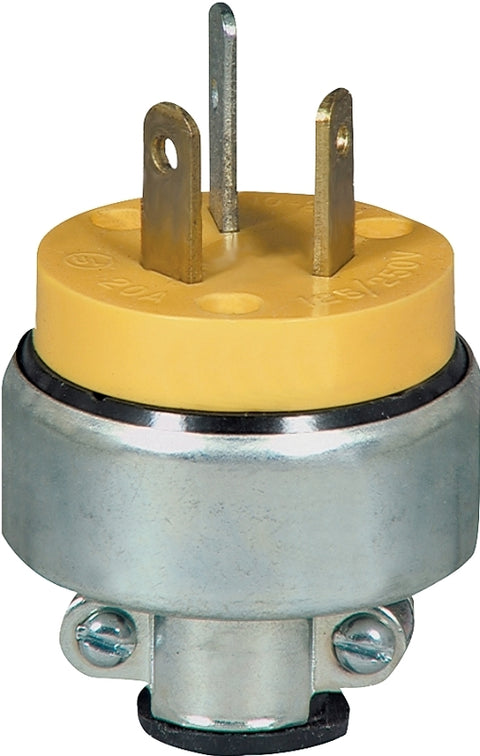

Eaton Wiring Devices 2836-BOX Power Plug, 3 -Pole, 30 A, 125 V, Yellow
Eaton Wiring Devices 2836-BOX Power Plug, 3 -Pole, 30 A, 125 V, Yellow
Eaton Wiring Devices

Eaton 2836-BOX Power Plug, 3-Pole, 30 A, 125 V, Screw, NEMA: NEMA 10-20P, Yellow

Our Item #: VORG7130248 UPC: 032664325304
Delivery i
3-5 Business Days
139 available
Ship to Store i
Pickup in 2-4 days
26 available
$8.58 $13.09you save $4.51
Commercial-grade, armored housing resists abuse. Solid brass plug blades are firmly embedded in body. Terminals in individual chambers to positively insulate conductors. Accepts #14 - #10 AWG wire. NEMA 10-20P. UL498 Listed, file no. E15012; NOM certified. Temperature rating: -20 to +75 deg C maximum continuous.
Unit: EA
UPC: 032664325304
Model Number: 2836-BOX
Eaton 2836-BOX Power Plug, 3-Pole, 30 A, 125 V, Screw, NEMA: NEMA 10-20P, Yellow
$8.58$13.09

  • Armored housing resists abuse and is automatically grounded
  • Solid brass plug blades are firmly embedded in body
  • Terminals in individual chambers to positively insulate conductors
  • Heavy-duty design and construction
  • Matching receptacle 805

  • Cable/Wire Size: 14 to 10
  • Color: Yellow
  • Connection Type: Screw
  • Current Rating: 30
  • Dimensions: 1.93 in L x 1.87 in W x 1.65 D
  • Grounding Type: Non-Grounded
  • Material: PVC
  • NEMA Configuration: NEMA 10-20P
  • Number of Poles: 3
  • Number Of Wires: 3
  • Operating Temperature: -20 to 75
  • Type: Heavy-Duty
  • Voltage Rating: 125
