Eaton Wiring Devices

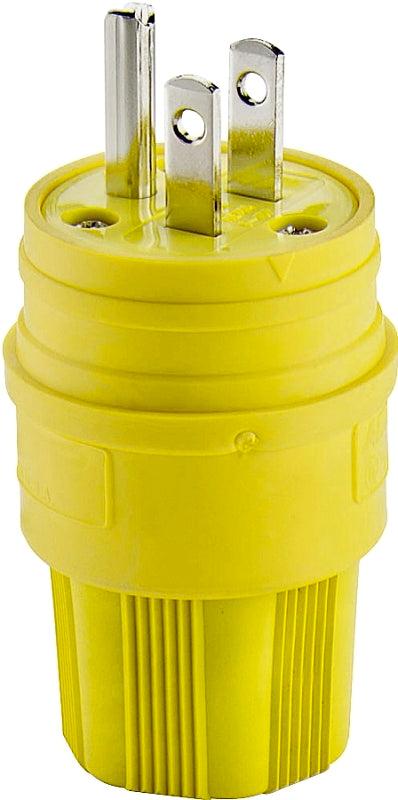

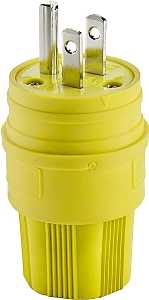

Eaton 14W47-K Electrical Plug, 2-Pole, 15 A, 125 V, IP66, NEMA: NEMA 5-15, Yellow
Sale price
$19.69
Regular price$27.65you save $7.96
Used for marine applications in areas of water or moisture. Thermoplastic elastomeric (TPE) exterior. Glass filled nylon and glass filled polypropylene interior. 15 A, 125 V. Temperature rating of -40 to 70 deg C. Listed to UL 498 (file no.E3663) and watertight. NEMA 5-15.
Unit: EA
UPC: 032664666902
Model Number: 14W47-K
Unit: EA
UPC: 032664666902
Model Number: 14W47-K
Eaton 14W47-K Electrical Plug, 2-Pole, 15 A, 125 V, IP66, NEMA: NEMA 5-15, Yellow
$19.69$27.65
- Thermoplastic elastomeric exteriors outperform rubber when exposed to moisture, chemicals, oils and the effects of ultraviolet radiation and ozone attack
- Mated plug and connector form a watertight seal that meets the requirements of NEMA 3R, 4X, IEC IP67 and withstands water spray test at 800 psi
- Connector supplied with closure cap for watertight seal when connector not in use, optional plug cap available
- High-visibility safety yellow for identification
- Contacts, blades and terminal screws nickel-plated for corrosion resistance
- Quick drive, stainless steel assembly screws for fast installation
- Color-coded neoprene grommets for a watertight seal on a wide range of cord sizes
- Cable/Wire Size: 19/64 to 21/32
- Color: Yellow
- Current Rating: 15
- Dimensions: 3.44 in L x 1.81 in W
- Grounding Type: Grounded
- IP Rating: IP66
- Material: Thermoplastic
- NEMA Configuration: NEMA 5-15
- Number of Poles: 2
- Number Of Wires: 3
- Operating Temperature: -40 to 70
- Type: Watertight
- Voltage Rating: 125
