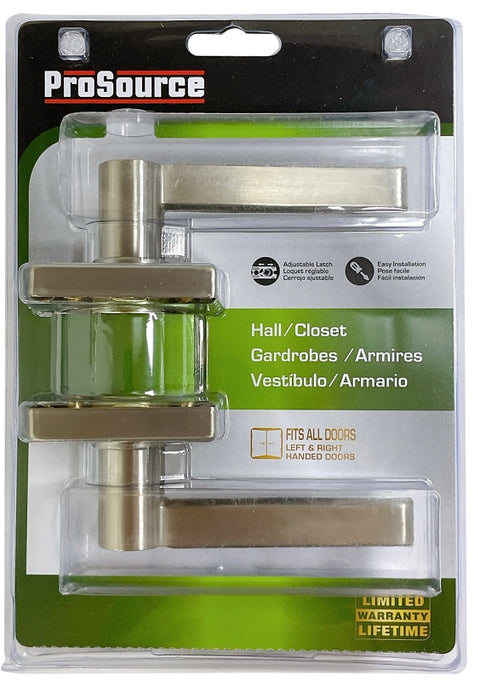

ProSource LS3X203YASR4V24 Passage Door Lockset, Lever Handle, Metal, Satin Nickel, 2-3/8 to 2-3/4 in Backset
ProSource LS3X203YASR4V24 Passage Door Lockset, Lever Handle, Metal, Satin Nickel, 2-3/8 to 2-3/4 in Backset
ProSource LS3X203YASR4V24 Passage Door Lockset, Lever Handle, Metal, Satin Nickel, 2-3/8 to 2-3/4 in Backset
ProSource LS3X203YASR4V24 Passage Door Lockset, Lever Handle, Metal, Satin Nickel, 2-3/8 to 2-3/4 in Backset
Prosource

ProSource LS3X203YASR4V24 Passage Door Lockset, Lever Handle, Metal, Satin Nickel, 2-3/8 to 2-3/4 in Backset

Our Item #: VORG7420979 UPC: 045734678491
Delivery i
3-5 Business Days
240 available
Ship to Store i
Pickup in 2-4 days
54 available
$24.47 $30.69you save $6.22
Adjustable six-way latch, adjustable backset is 2-3/8 in or 2-3/4 in (60 mm or 70 mm). Fits 1-3/8 to 1-3/4 in (35 to 45 mm) door thickness.
Unit: CD
UPC: 045734678491
Model Number: LS3X203YASR4V24
ProSource LS3X203YASR4V24 Passage Door Lockset, Lever Handle, Metal, Satin Nickel, 2-3/8 to 2-3/4 in Backset
$24.47$30.69

  • Adjustable six-way latch
  • Adjustable backset 2-3/8 in or 2-3/4 in (60 mm or 70 mm)
  • Fits 1-3/8 to 1-3/4 in (35 to 45 mm) door thickness

  • Backset Size: 2-3/8 to 2-3/4 in
  • Backset Type: Adjustable
  • Bolt Throw Size: 12.5 mm
  • Commercial/Residential: Residential
  • Cross Bore Diameter: 2-1/8 in
  • Design: LS3
  • Door Thickness: 1-3/8 to 1-3/4 in
  • Edge Bore Diameter: 1 in
  • Faceplate Size: 25.2 x 56.7 mm
  • Finish: Satin Nickel
  • Handle Type: Lever
  • Latch Type: Adjustable
  • Material: Metal
  • Mounting Type: Screw
  • Package Type: Clamshell
  • Projection Size: 59.7 mm
  • Security Grade: ANSI Grad 3
  • Strike Size: 44 x 57 mm
  • Strike Type: Full Lip Round Corner
  • Throw Length: 12.5 mm
