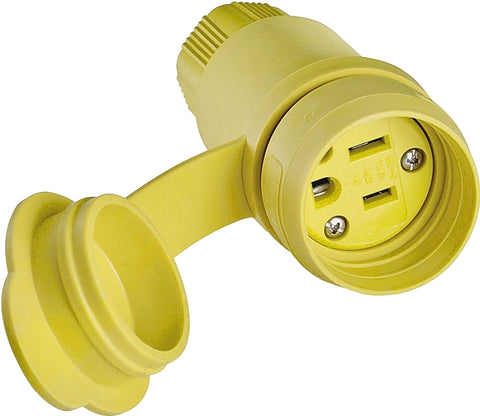

Eaton Wiring Devices 15W47-K Electrical Connector, 2 -Pole, 15 A, 125 V, IP66, NEMA: NEMA 5-15, Yellow
Eaton Wiring Devices 15W47-K Electrical Connector, 2 -Pole, 15 A, 125 V, IP66, NEMA: NEMA 5-15, Yellow
Eaton Wiring Devices

Eaton Wiring Devices 15W47-K Electrical Connector, 2 -Pole, 15 A, 125 V, IP66, NEMA: NEMA 5-15, Yellow

Our Item #: VORG8894933 UPC: 032664666919
Delivery i
3-5 Business Days
147 available
Ship to Store i
Pickup in 2-4 days
11 available
$28.85 $34.19you save $5.34
Used for marine applications in areas of water or moisture. Thermoplastic elastomeric (TPE) exterior. Glass filled nylon and glass filled polypropylene interior. 15 A, 125 V. Temperature rating of -40 to 70 deg C. Listed to UL 498 (file no.E3663) and watertight. NEMA 5-15.
Unit: EA
UPC: 032664666919
Model Number: 15W47-K
Eaton Wiring Devices 15W47-K Electrical Connector, 2 -Pole, 15 A, 125 V, IP66, NEMA: NEMA 5-15, Yellow
$28.85$34.19

  • Thermoplastic elastomeric exteriors outperform rubber when exposed to moisture, chemicals, oils and the effects of ultraviolet radiation and ozone attack
  • Mated plug and connector form a watertight seal that meets the requirements of NEMA 3R, 4X, IEC IP67 and withstands water spray test at 800 psi
  • Connector supplied with closure cap for watertight seal when connector not in use, optional plug cap available
  • High visibility safety yellow for identification
  • Contacts, blades and terminal screws nickel plated for corrosion resistance
  • Quick drive, stainless steel assembly screws for fast installation
  • Color-coded neoprene grommets for a watertight seal on a wide range of cord sizes

  • Cable/Wire Size: 19/64 to 21/32 in
  • Color: Yellow
  • Current Rating: 15 A
  • Dimensions: 4 in L x 1.59 in W
  • Grounding Type: Grounded
  • IP Rating: IP66
  • Material: Thermoplastic
  • NEMA Configuration: NEMA 5-15
  • Number of Poles: 2
  • Number Of Wires: 3
  • Operating Temperature: -40 to 70 deg C
  • Type: Watertight
  • Voltage Rating: 125 V
