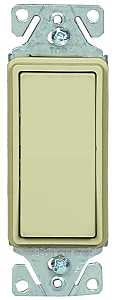

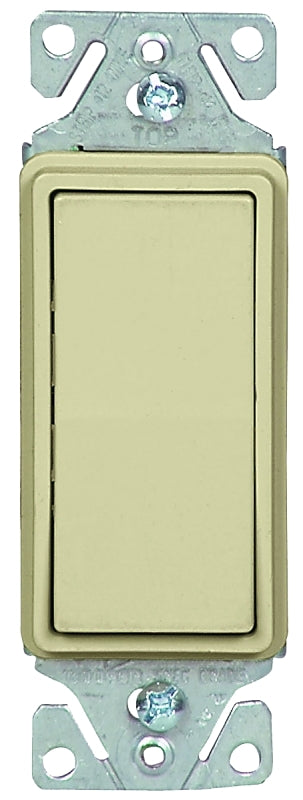

Eaton Wiring Devices 7501V-BOX Rocker Switch, 15 A, 120/277 V, SPST, Back Wire, Push Wire Terminal, Ivory
Eaton Wiring Devices 7501V-BOX Rocker Switch, 15 A, 120/277 V, SPST, Back Wire, Push Wire Terminal, Ivory
Eaton Wiring Devices

Eaton Wiring Devices 7501V-BOX Rocker Switch, 15 A, 120/277 V, SPST, Back Wire, Push Wire Terminal, Ivory

Our Item #: VORG6586150 UPC: 032664752377
$3.24 $3.35you save $0.11
Decorator switches feature ultrasonic welding and integrated construction of the strap and body provide superior integrity. Backwire clamps on the side terminals provide for easy installation of #12 and #14 wire. Re-designed paddle for easier actuation and quiet operation. Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance. Tri-combo screws accept slotted, Phillips and Robertson-head tools for installation flexibility. Long, broad mounting strap virtually eliminates floating installations. Patented built-in wire stripper for #12 and #14 wire to speed installation. Stippled ground screw terminal standard. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications. Push-in terminals accept #14 solid wire.
Unit: EA
UPC: 032664752377
Model Number: 7501V-BOX

  • Thermoplastic rocker, top and back body are virtually unbreakable to deliver years of durable performance
  • Ultrasonic welding and integrated construction of the strap and body provide great ground integrity even under heavy use
  • Backwire clamps on side terminals provide for easy installation of #12 and #14 AWG wire
  • Push-in terminals accept #14 AWG solid wire for quick installation
  • Stippled ground screw terminal standard
  • Long, broad mounting strap virtually eliminates floating installations
  • Patented built-in wire stripper for #14 and #12 AWG wire to speed installation
  • Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility
  • Lighted switches glow in off position
  • Redesigned paddle for easier actuation and quiet operation

  • Color: Ivory
  • Contact Configuration: SPST
  • Contact Material: Brass
  • Current Rating: 15 A
  • Dimensions: 4.19 in L x 1.44 in W x 0.97 in D
  • Housing Material: Thermoplastic
  • Mounting Type: Flush
  • Temperature Rating: -20 to 60 deg C
  • Terminal Type: Back Wire Push Wire
  • Voltage Rating: 120/277 V
