Prime-Line H 3511 Window Operator, 9 in L x 3-7/8 in W x 13-1/4 in H Dimensions
Prime-Line H 3511 Window Operator, 9 in L x 3-7/8 in W x 13-1/4 in H Dimensions
Prime-Line H 3511 Window Operator, 9 in L x 3-7/8 in W x 13-1/4 in H Dimensions
Prime-Line H 3511 Window Operator, 9 in L x 3-7/8 in W x 13-1/4 in H Dimensions
Prime Line Products

Prime-Line H 3511 Window Operator, 9 in L x 3-7/8 in W x 13-1/4 in H Dimensions

Our Item #: VORG1170307 UPC: 49793035110
Delivery i
3-5 Business Days
8 available
$19.50 $25.59you save $6.09

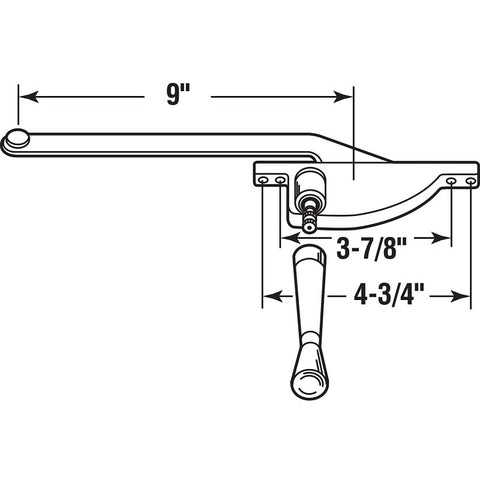

The H 3511 casement window operator is a right hand bronze teardrop body type. It has a 9 in steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 5/16 in crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 and 4-3/4 in apart.
Unit: EA
UPC: 049793035110
Model Number: H 3511
Prime-Line H 3511 Window Operator, 9 in L x 3-7/8 in W x 13-1/4 in H Dimensions
$19.50$25.59

  • 3-7/8 in and 4-3/4 in mounting holes
  • Casement track may also need to be replaced

  • Dimensions: 9 in L x 3-7/8 in W x 13-1/4 in H
  • Finish: Bronze
  • Handle Type: Crank
  • Includes: Matching Crank Handle Mounting Screw

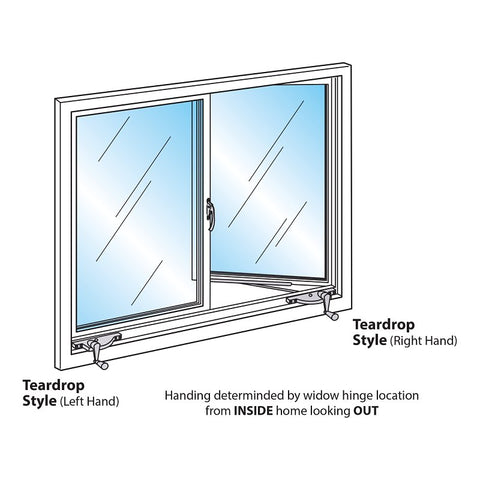

  • Right Hand/Left Hand: Right
  • Suitable for: Older Steel Framed Windows
