National Hardware

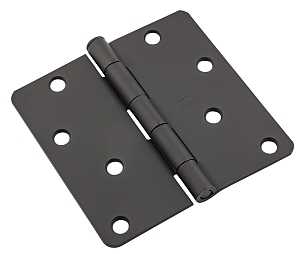

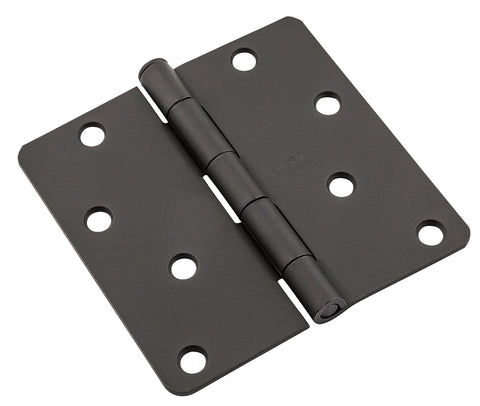

National Hardware 512 Series N830-432 Door Butt Hinge, 1/4 in Corner Radius, Black, 4 in H Frame Leaf, Steel
Regular price
$4.43
Sale price$7.55you save $3.12
National Hardware 512 Door Butt Hinge, 55 lb Weight, Door Leaf Height: 4 in, Door Leaf Thickness: 0.08 ga, Frame Leaf Height: 4 in, Frame Leaf Thickness: 0.08 ga, Number of Knuckles: 5, Pin Type: Removable, Pin Diameter: 7/16 in, Orientation Type: Left, Reversible, Right, Mortise, Screw Mounting, Number of Mounting Holes: 8, Hole Spacing: 3.31, 3-5/32, 2-1/8 in, Corner Radius: 1/4 in, Steel, Black, Dimensions: 4-5/16 in H x 4 in W, Includes: Fasteners
Unit: BAG
UPC: 886780020359
Model Number: N830-432
Unit: BAG
UPC: 886780020359
Model Number: N830-432
National Hardware 512 Series N830-432 Door Butt Hinge, 1/4 in Corner Radius, Black, 4 in H Frame Leaf, Steel
$4.43$7.55
Features
- Heavy-gauge cold-rolled steel for added strength
- Flush pin for finished appearance
- Five knuckle, full mortise design
- 1/4 in radius round corners
- Countersunk screw holes with fasteners included
- Removable pin for easy installation and removal
More Specifications
- Color: Black
- Corner Radius: 1/4 in
- Dimensions: 4-5/16 in H x 4 in W
- Door Leaf Height: 4 in
- Door Leaf Thickness: 0.08 ga
- Frame Leaf Height: 4 in
- Frame Leaf Thickness: 0.08 ga
- Hole Spacing: 3.31 3-5/32 2-1/8 in
- Includes: Fasteners
- Material: Steel
- Mounting Type: Mortise Screw
- Number of Knuckles: 5
- Number of Mounting Holes: 8
- Orientation Type: Left Reversible Right
- Pin Diameter: 7/16 in
- Pin Type: Removable
- Weight Capacity: 55 lb
